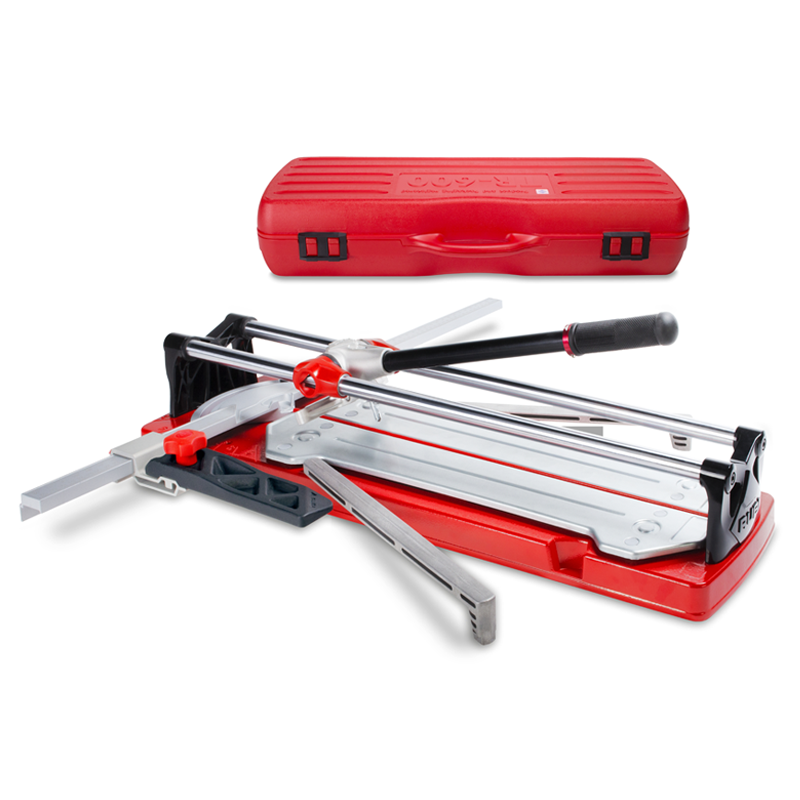

Rubi TR710 Magnet Tile Cutter 17906
$476.00 INC VAT
When we talk about TR-MAGNET manual cutters we should highlight their mobile breaker. Thanks to the mobile breaker, TR-MAGNET manual cutters are ideal for diagonal cuts. Cuts can be made very accurately thanks to the swivel square.
TR-MAGNET manual cutters allow for intensive cutting of ceramic tiles, especially when we refer to BIII type and stoneware tiles of BIIa type, but they also offer us optimum performance in the frequent cutting of porcelain tiles (BIa type) with a thickness of less than 15mm.
The multipoint breaker of RUBI TR-MAGNET manual cutters ensures perfect cutting quality in the execution of diagonal cuts from end to end.
On the other hand, the TR-MAGNET stands out for having a system fitted with the separator assembly, which allows the operator to work with one hand.
The MAGNET system locks the breaker making it easier to grate the ceramic tile and providing better visibility. On the other hand, by simply moving the lever upwards we set the breaker, which will allow us to apply the 800kg maximum power and obtain a clean and precise cut.

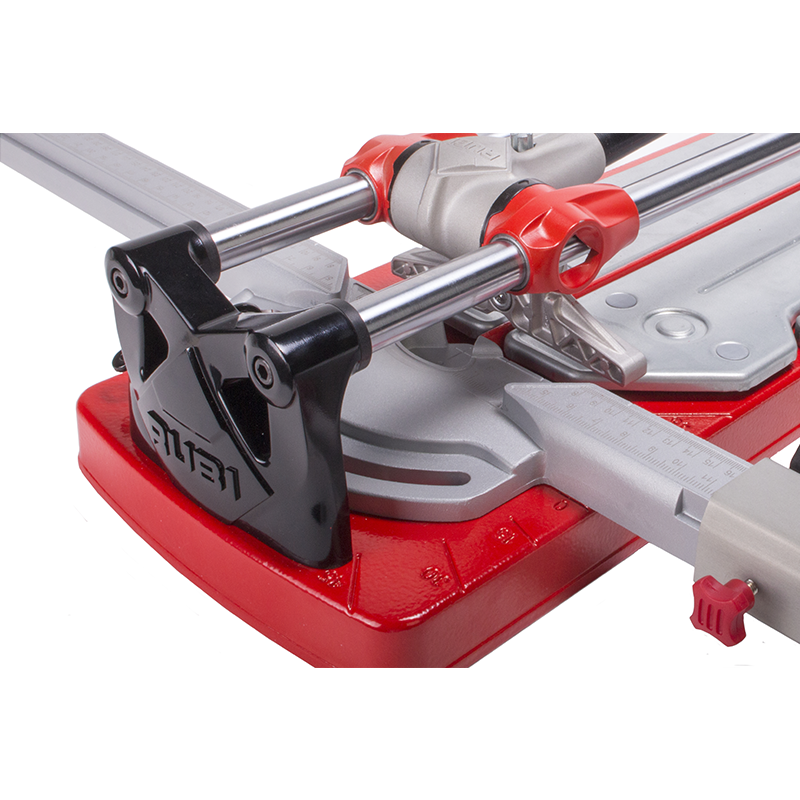

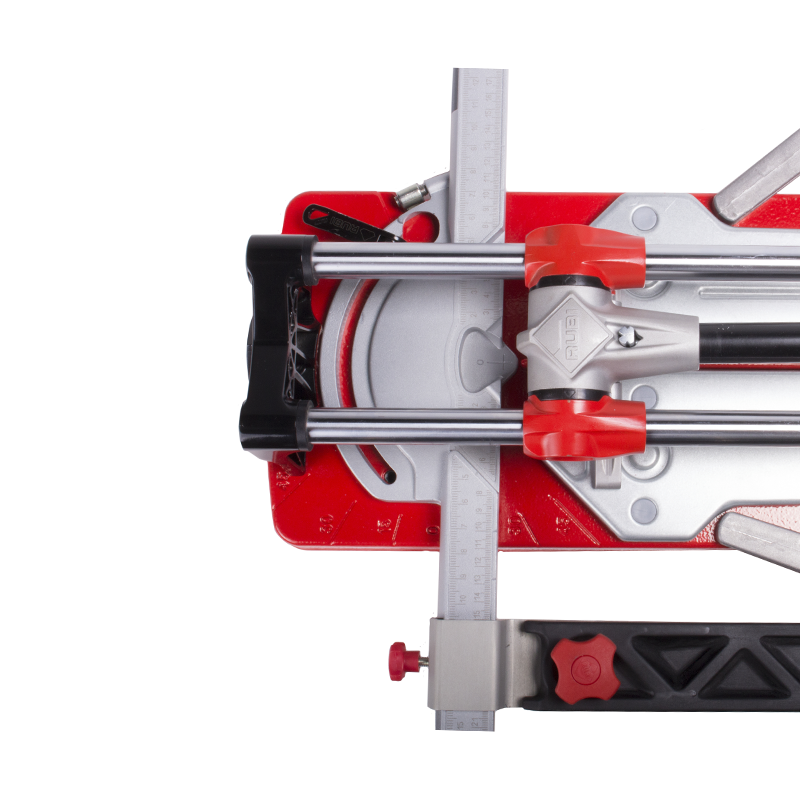

All models in the range of TR-MAGNET manual cutters feature a central pivot swivel square for quick and precise measurements of angular cuts in the -45º to 0° to 45° range. The square is completed with a technical plastic lateral stop that allows pieces to be fixed during repetitive cuts.
RUBI TR-MAGNET manual cutters have a high-strength two-layer aluminium base with a shock absorption effect and lateral supports for large tiles.

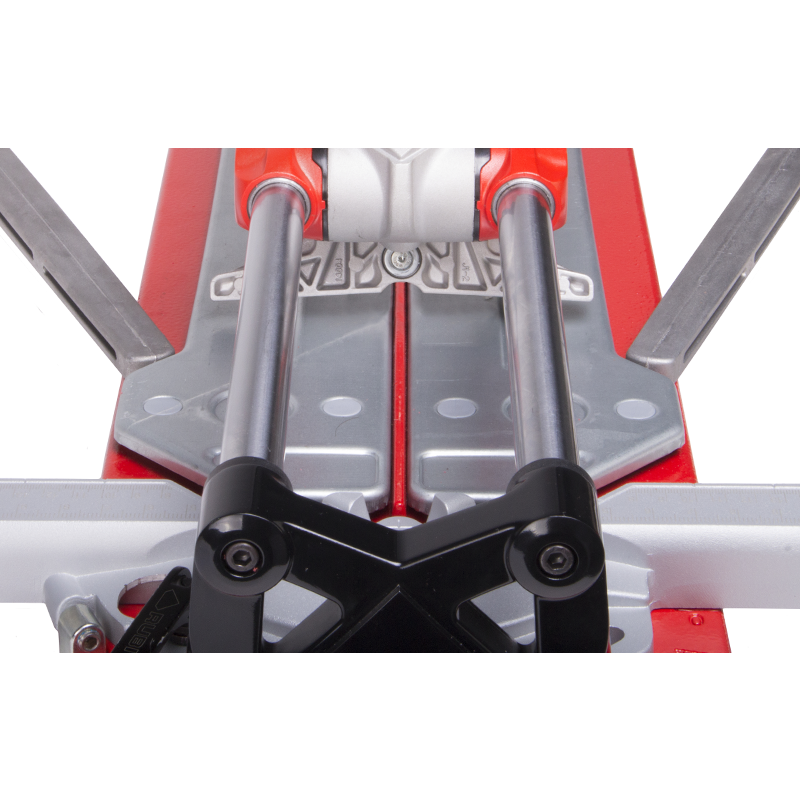

TR-MAGNET manual cutters are equipped with chromed steel guides which are rectified and calibrated and have an anti-corrosion treatment. This double guide system offers the user better and greater visibility of the scoring line, thus obtaining high precision in every cut.
The possibility of using the full range of RUBI interchangeable scoring wheels from 6 to 22mm, allows for TR-MAGNET manual cutters to be adapted to each ceramic material, thus achieving maximum performance and cut quality.

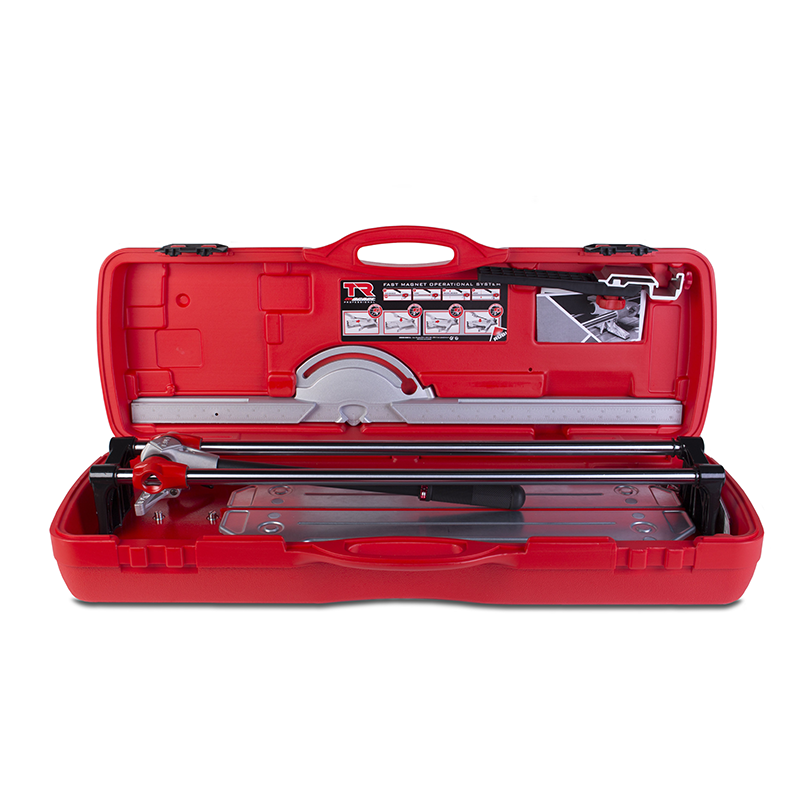

TR-MAGNET manual cutters include two scoring wheels as standard: one of 6mm for cutting the tile and another of 10mm for glazed stoneware. Finally, we should highlight one of the most distinctive and specific aspects of RUBI manual cutters: the transport case with reinforced latches and hinges, to protect and facilitate the portability of our TR-MAGNET manual cutters.
Cutting Length: 710mm
Diagonal Cutting Length: 500mm
Cutting Height: 3 - 15mm
Separator Power: 800kg
Supplied With Carrying Case
