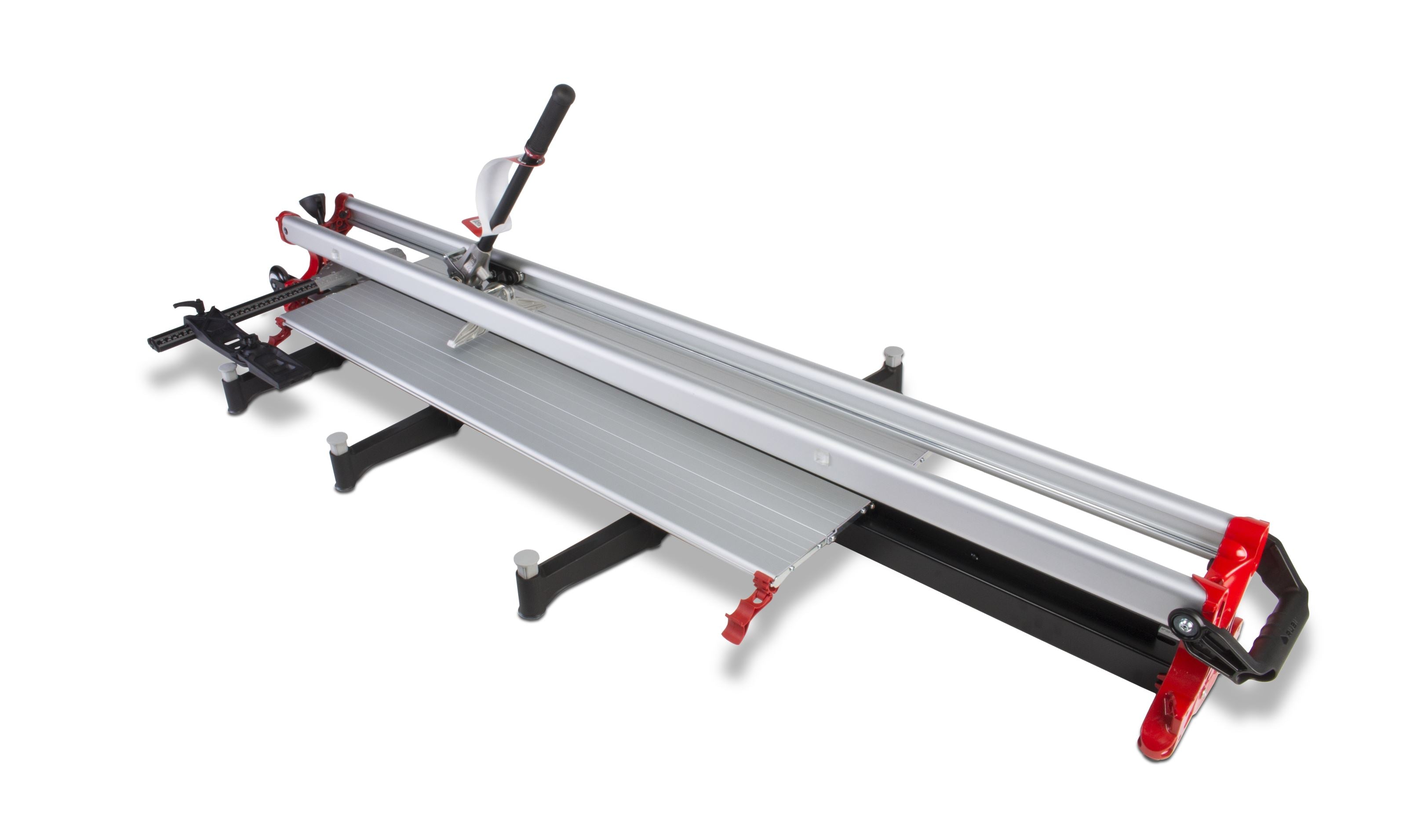

Rubi TZ-1550 Tile Cutter 155cm 17954
$1,370.00 INC VAT
TZ manual cutters are a new concept in the manual cutting of tiles with a separation capacity never seen before on the market and with innovative constructive solutions.
With a combination of the latest-generation materials and an innovative design, the RUBI TZ is the most advanced manual cutter on the market.
TZ manual cutters are pure power, their 1500kg of maximum breaking power and their exclusive and patented breaker mechanism allow the professional tiler to operate the cutter with one hand, thus facilitating work with large format tiles.
Thanks to the patented design of the head guidance system, the TZ manual cutter provides a smooth and accurate score, even if the load pressure is increased at the break. The geometry of the guides, made of extruded aluminium, ensures optimal performance of the scoring head and reduces the forces that may be generated while cutting.
Along with the guides, the steel frame of the TZ provides manual cutting with a bending resistance and a strength never seen before in a ceramic tile manual cutter.
TZ manual cutters are specifically designed to work with large format tiles.
Its large cutting capacity and a maximum power of 1500kg allow you to cut pieces up to 21mm of thickness*, with the ability to adjust the working position and the machine performance according to the thickness of the material.
The swivel square with removable ends and the locking system ensure precise cuts and facilitate the performance of angular cuts. The patented 30cm long lateral stop offers a large surface for performing repetitive cuts in large pieces.
Thanks to the brand's constant contact with professionals around the world, RUBI has also taken mobility and handling of the equipment into account in the design of TZ manual cutters.

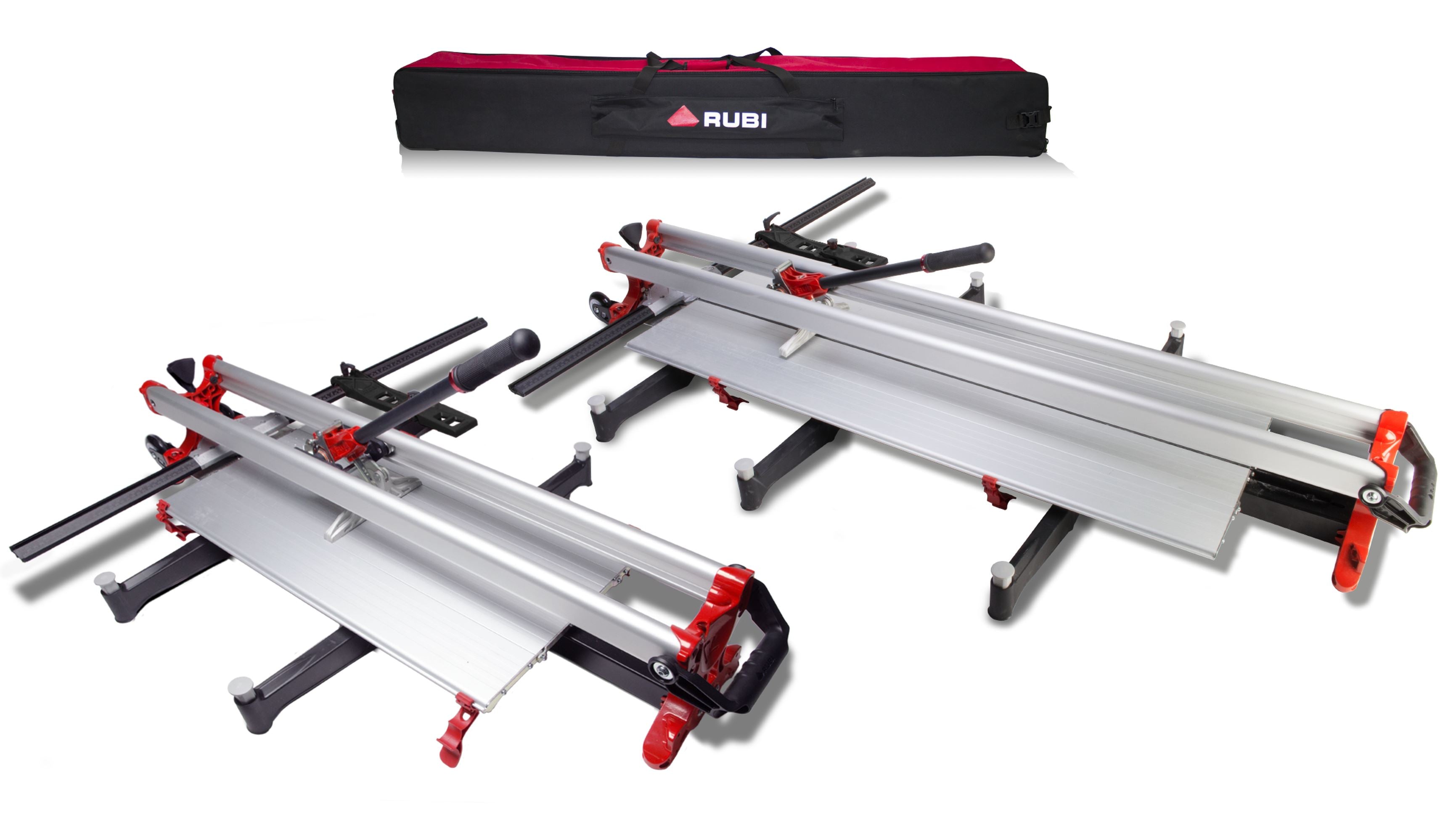

From the already mentioned square with removable ends to folding aluminium tables. Not to mention that TZ manual cutters are equipped with wheels and carrying handles to facilitate their portability in the workplace and a highly strengthened textile bag to transport and protect it.
TZ manual cutters are compatible with the full range of RUBI PLUS scoring wheels and are supplied with an 8mm Scoring Wheel and a 22mm Plus Extreme scoring wheel.
Cutting Length: 1550mm
Diagonal Cutting Length: 110mm
Cutting Height: 3 - 21mm
Separator Power: 1500kg

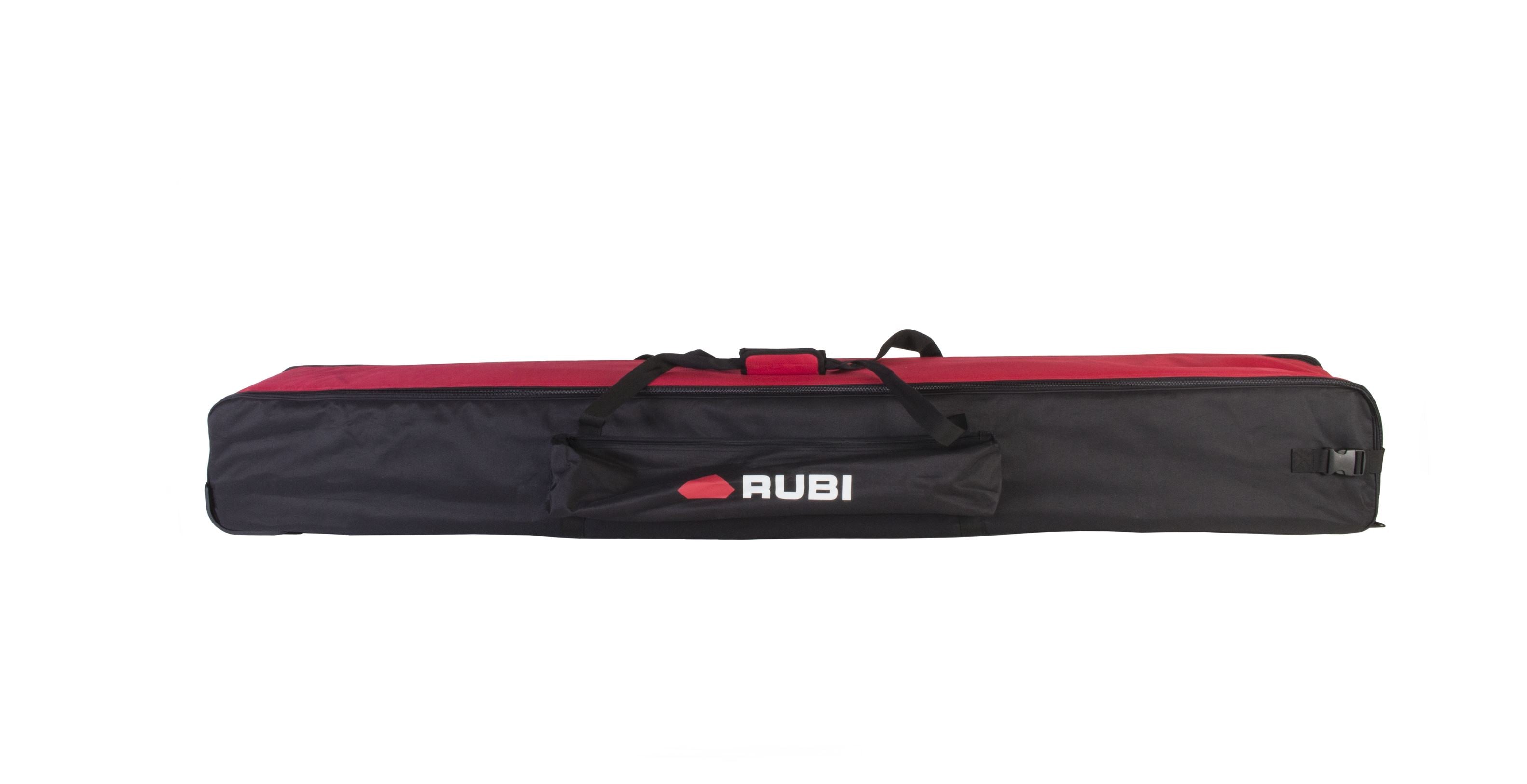

Supplied With Carrying Case
